PLCC68 series are very small stamp size FPGA & CPLD Module.
They are designed to be used with 68-pin PLCC socket, so it's very convenient to utilize on universal  boards.
PLCC68 series require only single 3.3V power supply. Pin assignments are same in all series. Vcco output driver supply is separated in two banks (A and B, 25 I/Os each).
These features are common for all series regardless of its FPGA/CPLD type.


Mount on PLCC socket

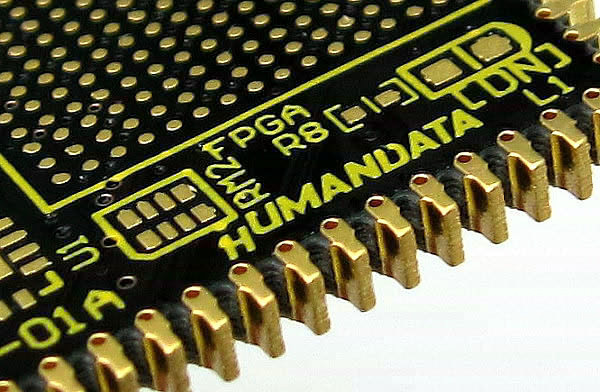

Terminal Shape

https://www.hdl.co.jp/PLCC/img/rei_jig18.jpg

Usage Example

https://www.hdl.co.jp/PLCC/bp68pin_h170.png

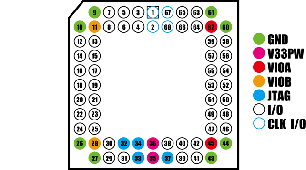

Pin Assignment
(when using PLCC socket)

Altera

No Description FPGA / CPLD Series Image Features DOC
1 MAX II PLCC68 CPLD Module EPM240F100C5N
EPM570F100C5N
AP68-01 altera MAX II PLCC MODULE AP68-01 images/stories/icons/ft-max2.png
images/stories/icons/ft-PLCC68.png

2 MAX V PLCC68 CPLD Module 5M570ZF256C5N AP68-02 altera MAX V PLCC MODULE AP68-02
images/stories/icons/ft-PLCC68.png

3 Cyclone III PLCC68 FPGA Module EP3C5U256C8N
EP3C10U256C8N
AP68-03 Cyclone III PLCC68 FPGA Module  AP68-03
images/stories/icons/ft-PLCC68.png

4 Cyclone III PLCC68 FPGA Module EP3C25U256C8N AP68-04 Cyclone III PLCC68 FPGA Module  AP68-04
images/stories/icons/ft-PLCC68.png

5 Cyclone V PLCC68 FPGA Module 5CEBA4U15C8N AP68-06Z Cyclone V PLCC68 FPGA Module  AP68-06Z
images/stories/icons/ft-PLCC68.png

6 Cyclone V PLCC68 FPGA Module 5CEBA4U15C8N AP68-07 Cyclone V PLCC68 FPGA Module  AP68-07

images/stories/icons/ft-PLCC68.png

7 MAX 10 PLCC68 FPGA Module 10M08SAU169C8GES AP68-08 MAX 10 PLCC68 FPGA Module  AP68-08 max10
images/stories/icons/ft-PLCC68.png

8 Cyclone 10 LP U256
PLCC68 FPGA Module
10CL006YU256C8G
10CL010YU256C8G
10CL016YU256C8G
10CL025YU256C8G
AP68-09 MAX 10 PLCC68 FPGA Module  AP68-09
images/stories/icons/ft-PLCC68.png

10 MAX 10 DCU324 PLCC68 FPGA Module 10M08DCU324I7G
10M16DCU324I7G
AP68-10 MAX 10 PLCC68 FPGA Module  AP68-10 max10
images/stories/icons/ft-PLCC68.png

AMD (XILINX)

No Description FPGA / CPLD Series Image Features DOC
1 Spartan-6 PLCC68 FPGA Module XC6SLX16-2CSG225C XP68-01 XILINX Spartan-6 PLCC FPGA MODULE XP68-01

ft-spartan6

images/stories/icons/ft-PLCC68.png

2 Spartan-3AN PLCC68 FPGA Module XC3S200AN-4FTG256C XP68-02 Spartan-3AN PLCC68 FPGA Module XP68-02
images/stories/icons/ft-PLCC68.png

3 Spartan-6 PLCC68 FPGA Module XC6SLX45-2CSG324C XP68-03 Spartan-6 PLCC68 FPGA Module XP68-03 ft-spartan6
images/stories/icons/ft-PLCC68.png

4 Artix-7 PLCC68 FPGA Module XC7A15T-1CSG324C
XC7A35T-1CSG324C
XC7A50T-1CSG324C
XC7A75T-1CSG324C
XC7A100T-1CSG324C
XP68-05 Artix-7 PLCC68 FPGA Module XP68-05 ft-Artix-7
images/stories/icons/ft-PLCC68.png

5 Spartan-7 PLCC68 FPGA Module XC7S25-1CSGA324C
XC7S50-1CSGA324C
XP68-06 Spartan-7 PLCC68 FPGA Module XP68-06 ft-spartan7
images/stories/icons/ft-PLCC68.png

6 Spartan-7 PLCC68 FPGA Module XC7S25-1CSGA225I XP68-07 Spartan-7 PLCC68 FPGA Module XP68-07 ft-spartan7
images/stories/icons/ft-PLCC68.png

Key Features

  • 50 I/Os (4 I/Os: assigned to clock preferentially)
  • 3.3 V single power supply operation (auxiliary power for FPGA/CPLD is built-in)
  • Mountable on 68pin PLCC socket
  • Separable VCCO (VIO(A)/VIO(B), MAX 3.3 V)
  • JTAG signal (TCK, TMS, TDI, TDO) is available
  • Common pin assignment for all PLCC68 series
  • Non-use of 6 Restricted substances of RoHS directive
  • MADE IN JAPAN

Application Note


[ ]
