[EDA-009] Altera Cyclone V USB-FPGA board, FTDI USB 3.0 FT600

Last Updated: Monday, 13 June 2016

Altera Cyclone V USB-FPGA board with FTDI USB3.0 bridge IC

Cyclone V SuperSpeed usb_config usb_comm

Overview

EDA-009 is Altera Corp.'s High performance USB-FPGA Cyclone V board. EDA-009 is compact and very simple. EDA-009 operates with single 5.0V power supply. An FTDI's FT600 offers USB3.0 bridge to FPGA user communication I/F. An FT232H is mounted for FPGA configuration.

No download cable is needed to configure the FPGA with HuMANDATA original configuration tool "BBC[EDA-009]".

» Please also see other FT600 series products.



USB-FPGA Board EDA-009
Click to Zoom

USB-FPGA Board EDA-009
Click to Zoom

Block Diagram

EDA-009
Click to Zoom





Specifications

  • Altera 5CEBA4F23C8N
    Feature 5CEBA4F23C8N
    Logic Elements 49 K
    Embedded memory(Kbits) 3,383
    18 x 18 Multipliers 132
    PLLs 4
    Global Clock Networks 16
    Maximum user I/O pins(Device) 224
    Maximum user I/O pins(Board) 100

    This table is for reference. Please refer to official data-sheets for certain information.

  • Power : 5.0 V single power supply operation
    - Separated VCCIO input (VIO(B))
  • 100 I/O PAD 100 mil (2.54 mm) grid
  • Configuration Device
  • USB3.0 bridge IC (FTDI, FT600)
    - User communication I/F
  • USB2.0 bridge IC (FTDI, FT232H)
    - User communication I/F
    - FPGA Configuration
    - Configuration device access (Write/Reset/Erase)
    - Free Original Configuration Tool " BBC[EDA-009]"
  • ESD protection for USB2.0 I/F
  • 50MHz Oscillator (50 ppm)
    - External clock inputs are avairable
  • User Switch x2 (Push x1, DIP x1)
  • User LED x2
  • Status LED x2 (Power, Done)
  • Power-on Reset
  • JTAG Connector(10 pin socket) for download cable connection
    - JTAG buffer for stable download and debug
  • High quality six layers PCB (Immersion gold)
  • Credit-Card-Size 3.386"x 2.126" (86 x 54 mm)
  • Tested all I/O
  • RoHS compliance
  • MADE IN JAPAN

Reference Data

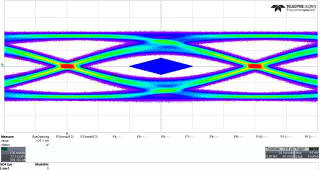

  • USB SuperSpeed connection check by a USB 3.0 test tool

EDA-009_SS_eye
Click to open a report webpage

  • USB HighSpeed Compliance Test. Eye pattern of upstream tests. (FT600)

EDA-009_FT600_eye
Click to enlarge

  • USB HighSpeed Compliance Test. Eye pattern of upstream tests. (FT232H)

EDA-009_FT232H_eye
Click to enlarge





Package Contents

Item Image Quantity
USB-FPGA board (EDA-009) USB-FPGA Board EDA-009 1
USB cable (Type A to B)   1
Pin Headers 80pinhead 2
Sockets 66pinsocket 2

There is no paper document such as user's manual and circuit schematic in the package.
Please download those documents from the link in the documentation section below.

Price and Add-ons

Description Model
(order code)
FPGA List price
jpy(JPY)
Stock Status
CycloneV USB-FPGA board EDA-009 5CEBA4F23C8N
Universal board
with 3.3V10A DC/DC POWER SUPPLY
ZKB-054 -

[]
