[UTL-012]Isolated 4-Channel 16-bit D/A Conversion Board

Last Updated: Wednesday, 14 January 2015

Isolated 4-Channel 16-bit D/A Conversion Board

Overview

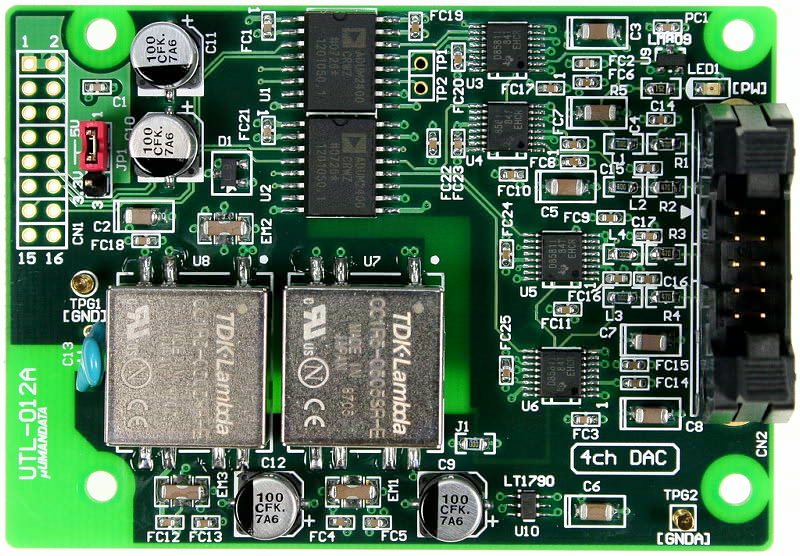

UTL-012 is an isolated D/A conversion board that has 4-channel 16-bit A/D converters.You can use it with FPGA or microcomputer.D/A converter ICs are DAC8581 (Texas Instruments).

Specifications

  • Stabilized DC 5 V
  • DAC8581 (Texas Instruments) x 4
  • LT1790BCS6-4.096V (Linear Technology)
  • LM809M3-4.00 (National Semiconductor)
  • MIL 10-pin
  • Insulation Method : Isolated DC/DC converters, Digital isolators
  • High quality four layers PCB.(Immersion gold)
  • Board size : 3.150" x 2.224" (80 x 56.5 [mm])
  • Non-use of 6 Restricted substances of RoHS directive
  • MADE IN JAPAN

Package Contents

Item Image Quantity
UTL-012 1
Pin Headers PIN HEADER 2X8_64 1
UTL-CA1 UTL-CA1 1

There is no paper document such as user's manual and circuit schematic in the package.
Please download those documents from the link in the documentation section below.
