New Product : Stamp FPGA Module of Xilinx Spartan-3AN for PLCC socket
Jun. 21, 2011 Release

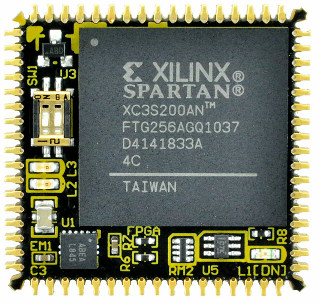

HuMANDATA LTD., the manufacturer of various FPGA boards in Japan, today launched XP68-02-200AN, a new PLCC FPGA module equipped with Xilinx Spartan-3AN FPGA.
XP68-02-200AN is so compact that it can be equipped on a universal board by using a 68pin DIP PLCC socket. It requires only one 3.3V single power supply. This module provides 50 user I/Os which are divided into two Vcco group. It is also equipped with an oscillator, two user LEDs and a configuration device on it.
XP68-02-200AN is compliant to RoHS directive and designed for lead-free soldering.
High resolution image for press (0.68MBytes)
Specifications:
- Xilinx Spartan-6 (XC3S200AN-4FTG256C)
- 50 user I/Os
- 3.3 V single power supply operation with on-board 1.2 V regulator
- Separable Vcco (VIO(A) and VIO(B))
- On-board 50MHz oscillator
- One User Switch (Slide)
- Two User LEDs (Red)
- One Status LED (Config Done:Green)
- Power-on Reset IC for stable FPGA configuration
- High quality six layers PCB(Immersion gold)
- Compact 68pin PLCC size (25.3 x 25.3 mm)
- Tested all I/O
- Non-use of 6 Restricted substances of RoHS directive
- MADE IN JAPAN
